Laminar Airflow Unit (Workstation)

CARE EQUIPMENT
-
0
Laminar Airflow Unit (Workstation)

Laminar Airflow Unit (Workstation) is a cabinet fitted with a HEPA filtered airflow system. Here, laminar means a unidirectional constant flow of air with almost no or minimal turbulence. The airflow velocity remains between 0.3 m/s to 0.5 m/s. The purpose of using such workstations in the laboratory is to create a particle and bacteria-free working environment to carry out specialized work. As these units discharge air towards the user, they provide no personal protection but product protection from room contaminants. LAF is a short form of laminar airflow. also known as LAF.

In the Laminar Airflow Unit (Workstation), room air is entered into the working area through a HEPA filter fitted on the back side of the cabinet. Filtered air flows Vertically toward the user creating a sterile working environment. The efficiency of a Laminar Air Flow workstation depends upon the quality of pre-filters and HEPA filters. In our LAF, the Air filtration system is created to work efficiently even in critical environments. Pre-filters that we use are box-type pleated having an efficiency of 95% down to 5 microns and made of HDPE + Non-woven + HDPE mesh media and fitted in an aluminum case. The HEPA filters are of high quality having an efficiency of 99.999 % down to 0.3 microns and fitted in an aluminum anodized case. The blower assembly has ¼ HP; 1400 RPM branded motor and has aluminum anodized impellers.

The working area is carefully designed for comfortable working and easy cleaning. The workbench is made of stainless steel. Standard fittings are air/gas cock and electrical outlet. For illumination, we use fluorescent lamps. The front side of the working area is covered by a manual sliding door (sash), which is made of transparent acrylic plastic. LCD display for air velocity, time, and lamp on/off status is displayed on it. Germicidal UV lamp, extra electrical socket, and Magnehelic gauge are also fitted if required.

Care Equipment is a Leading Laminar Airflow Unit (Workstation) manufacturer in India. We supply to all over India as well as abroad. Our LAF delivers low noise and easy-to-use operation, and rugged construction promises long service life. we make standard and customized LAF to any customer-provided size. Every Laminar Airflow Unit (Workstation) is made to comply with international standards and supplied at an industry-leading price in India.

Submit your Inquiry

Get Best Quotation in 30 Minutes!
[wpforms id=”2148″ title=”false”]

[toc]



Technical Specifications

Parameter Specification
Air Flow Vertical Flow
Air Cleanliness Dust counts exceeds Class 100 requirements as per ISO 14644 & IEST-RP-CC001.3
Air Velocity 90 ± 20 FPM at 150 mm from HEPA Filter Face, (0.45 ± 0.05 m/s)
Material Thickness 1 mm / 1.2 mm or In Combination
Surface Finish Matte Finish No. 4
Material Grade SS 304 / SS 316 / SS 316L / In Combination
HEPA Filter 0.3 Micron, H14 Grade with Efficiency 99.999%, Supply Minipleat HEPA Filter
Pre-Filter 5 Micron, EU5 grade with Efficiency 95% – Washable (For Fresh Air & Recirculation)
Protective Grille Yes for HEPA Filters and Pre Filters
Motor Blower Statically & Dynamically Balanced Single/Double Inlet Centrifugal Type Motor Blower
Magnehelic Gauge 0 to 25 MM, To measure differential pressure across HEPA Filter
Speed Variable To adjust the speed of Motor Blower and maintain the required velocity.
Display Two Line Digital Display with ON/OFF Buttons with LED Indication
LED Light Diffused Fluorescent Lighting to provide an intensity of 300 LUX
Alarm System Audio Visual Alarm for Blower Trip
System Protection Password Protected System
DOP/PAO Test Port SS 304 (For HEPA Filter Testing)
Atmospheric Nozzle SS 304
Noise Level Less than 65 DB on scale
Power Supply 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase)
Documentation DQ, IQ and OQ Documents along with all Necessary Test Certificates



Standard Size of Laminar Airflow Unit (Workstation) (LAF)

Internal Size in Feet
(W X D X H)		 Internal Size in MM
(W X D X H)		 HEPA Filter Size in Feet
(W X D X H)
2 X 2 X 2 610 X 610 X 610 2 Feet X 2 Feet X 3 Inch
3 X 2 X 2 915 X 610 X 610 3 Feet X 2 Feet X 3 Inch
4 X 2 X 2 1220 X 610 X 610 4 Feet X 2 Feet X 3 Inch
6 X 2 X 2 1830 X 610 X 610 3 Feet X 2 Feet X 3 Inch (2 Nos)
*We also manufacture Laminar Airflow Unit (Workstation) (LAF) size as per customer’s requirement



Warranty and Service Support

We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.



Documentation

  • Design Qualification
  • Installation Qualification
  • Operational Qualification



Certificates

  • M.O.C. Certificate
  • Test Certificate for Controller
  • Other Required Certificates
  • HEPA Filter Test Certificate
  • Pre Filter and Fine Filter Test Certificate
  • Motor Blower Test Certificate
  • Control Panel Test Certificate
  • Differential Pressure Gauge Calibration Certificate



Areas of Application

  • Pharmaceutical Industries
  • Hospitals and Medial
  • Microbiology Laboratories
  • Chemical Research Laboratories
  • Food Processing Industries
  • Electronics Industries



Related Search

  • Laminar Airflow Unit (Workstation) LAF manufacturer
  • Laminar Airflow Unit (Workstation) LAF Manufacturer in Ahmedabad, Gujarat, India
  • LAF Manufacturer
  • Laminar Airflow Cabinet Manufacturer
  • Laminar Airflow Workstation Manufacturer
  • SS 304 Laminar Airflow Unit Manufacturer
  • Cleanroom LAF Manufacturer
  • Laboratory Laminar Airflow Manufacturer
  • Stainless Steel Laminar Airflow with High Quality and Service Support
  • High Quality LAF (Laminar Airflow Unit) Vertical type
  • Premium Quality Vertical LAF
  • Pharmaceutical Laminar Airflow Unit (Workstation)
  • Laminar Airflow Unit with UV Light for Microbiology
  • Microbiology Laminar Airflow Unit
  • SS 304 Laminar Airflow Unit (Workstation) LAF
  • SS 316 Laminar Airflow Unit (Workstation) LAF
  • SS 316L Laminar Airflow Unit (Workstation) LAF
  • SS Cleanroom Laminar Airflow Unit (Workstation) LAF
  • Stainless Steel Laminar Airflow Unit (Workstation) LAF
  • Stainless Steel LAF
  • Flame Proof Laminar Airflow Unit (Workstation) LAF
  • FLP Laminar Airflow Unit (Workstation) LAF
  • GMP Laminar Airflow Unit (Workstation) LAF



Biosafety Cabinet

CARE EQUIPMENT
-
0
Biosafety Cabinet

Biosafety Cabinets are specialized workstations widely used in clinical, pharmaceutical, life science and industrial laboratories where experiments need highly contaminant free environment. Also known as biological safety cabinets and biohazard safety cabinets, these are made in three different class types such as Class 1, Class 2 and Class 3; in which Class 2 is widely used in microbiology laboratories because it provides protection to both product as well as personal. It is biosafety level factor which decides which bsc should be used in laboratory. These cabinets are considered safer than other clean benches because such BSCs effectively eliminate risks to operator/staff, samples, and the environment from pathogenic biological agents (PBA) and microorganisms responsible for spreading airborne infection.

WHY DO WE USE BIOSAFETY CABINET?
The purpose of using biosafety cabinet in microbiology laboratory is to protect laboratory personal as well as surrounding environment from exposure to biohazards while working with infectious agents.

BIOSAFETY CABINET APPLICATIONS
There are many uses of bio safety cabinets such as chemotherapy preparation, drug formulation, and animal cell culture processing and in TB lab for manipulation of mycobacterium tuberculosis culture etc.

DIFFERENT TYPES OF CLASS 2 BIOSAFETY CABINET
There are three types of class 2 biosafety cabinets are made. It is the type of work which decides which class 2 bsc should be used in laboratory. Below is short description about all types:

Type A2: recirculate approximately 70% air and 30% exhaust
Type B1: recirculate approximately 30% air and 70% exhaust
Type B2: Does not recirculate but exhaust 100% air

We are Biosafety cabinet manufacturers in India. Having factory based in Delhi, the company has been manufacturing customized Biosafety Cabinets Class II Type A2 and sell them at reasonable price throughout India and overseas market including African and Middle East countries. We have technicians, machinery and knowledge that capable us to serve you with your choice of Biosafety cabinet that may vary in dimensions, associated accessories and control points etc. Made of branded parts, these cabinets are highly effective to maintain maximum level of safety; hence, considered a necessary part of any research laboratory.

CONSTRUCTION
These cabinets are ergonomically designed to provide long service life. Only thick metal sheets and pipes are used in construction so that you may get the finest and safest Biosafety Cabinet in the market today.

AIR CIRCULATION
In order to minimize spread of airborne bacteria and viral organisms, the use of filter is crucial; therefore, we use 99.97% efficiency HEPA filters for particle size 0.3 microns in our biological class 2 type A2 safety cabinets. These air filters are of reputed brands in the market, economical in price and easy replaceable. ISO 5 / Class 100 quality, supply and exhaust through HEPA filters are done. Inflow velocity remains approx. 105 fpm (0.5 m/sec), while down flow velocity remains approx. 55 fpm (0.3 m/sec). 70 % air is re-circulated and 30% exhaust.

OTHER FITTINGS
Our Biosafety cabinets are fitted with fluorescent lights outside working zone. UV lamps are fitted inside working zone in such a way that the operator cannot see them directly. An hour meter is connected to UV lamp. Electrical sockets are fitted to run any instrument under the working area; in addition, service fixtures for air, gas, vacuum and water are also fitted.

We also make biosafety cabinets class 2 type B1 and B2 and Class 3

Submit your Inquiry

Get Best Quotation in 30 Minutes!
[wpforms id=”2148″ title=”false”]

[toc]



Technical Specifications

Parameter Specification
Air Flow Vertical Flow (Recirculated as per Class)
Air Cleanliness Dust counts exceeds Class 100 requirements as per ISO 14644 & IEST-RP-CC001.3
Air Velocity 90 ± 20 FPM at 150 mm from HEPA Filter Face, (0.45 ± 0.05 m/s)
Material Thickness 1 mm / 1.2 mm or In Combination
Surface Finish Matte Finish No. 4
Material Grade SS 304 / SS 316 / SS 316L / In Combination
Construction SS 304
Side Walls 5 mm Transparent – Acrylic / Polycarbonate / Stainless Steel SS 304
Front Sash 5 mm Hinged Type Transparent – Acrylic / Polycarbonate / Stainless Steel SS 304
HEPA Filter 0.3 Micron, H14 Grade with Efficiency 99.999%, Supply Minipleat HEPA Filter
Pre-Filter 5 Micron, EU5 grade with Efficiency 95% – Washable (For Fresh Air & Recirculation)
Protective Grille Yes for HEPA Filters and Pre Filters
Motor Blower Statically & Dynamically Balanced Single/Double Inlet Centrifugal Type Motor Blower
Magnehelic Gauge 0 to 25 MM, To measure differential pressure across HEPA Filter
Speed Variable To adjust the speed of Motor Blower and maintain the required velocity.
Display Two Line Digital Display with ON/OFF Buttons with LED Indication
LED Light Diffused Fluorescent Lighting to provide an intensity of 300 LUX
Alarm System Audio Visual Alarm for Blower Trip
System Protection Password Protected System
Front Sash Handle SS 304
DOP/PAO Test Port SS 304 (For HEPA Filter Testing)
Atmospheric Nozzle SS 304
Noise Level Less than 65 DB on scale
Power Supply 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase)
Documentation DQ, IQ and OQ Documents along with all Necessary Test Certificates



Standard Size of Biosafety Cabinet (BSC)

Internal Size in Feet
(W X D X H)		 Internal Size in MM
(W X D X H)		 HEPA Filter Size in Feet
(W X D X H)
2 X 2 X 2 610 X 610 X 610 2 Feet X 2 Feet X 3 Inch
3 X 2 X 2 915 X 610 X 610 3 Feet X 2 Feet X 3 Inch
4 X 2 X 2 1220 X 610 X 610 4 Feet X 2 Feet X 3 Inch
6 X 2 X 2 1830 X 610 X 610 3 Feet X 2 Feet X 3 Inch (2 Nos)
*We also manufacture Biosafety Cabinet (BSC) size as per customer’s requirement



Warranty and Service Support

We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.



Documentation

  • Design Qualification
  • Installation Qualification
  • Operational Qualification



Certificates

  • M.O.C. Certificate
  • Test Certificate for Controller
  • Other Required Certificates
  • HEPA Filter Test Certificate
  • Pre Filter and Fine Filter Test Certificate
  • Motor Blower Test Certificate
  • Control Panel Test Certificate
  • Differential Pressure Gauge Calibration Certificate



Areas of Application

  • Pharmaceutical Industries
  • Hospitals and Medial
  • Microbiology Laboratories
  • Chemical Research Laboratories
  • Food Processing Industries
  • Electronics Industries



Related Search

  • Biosafety Cabinet BSC manufacturer
  • Biosafety Cabinet BSC Manufacturer in Ahmedabad, Gujarat, India
  • BSC Manufacturer
  • Laminar Airflow Cabinet Manufacturer
  • Laminar Airflow Workstation Manufacturer
  • SS 304 Laminar Airflow Unit Manufacturer
  • Cleanroom LAF Manufacturer
  • Laboratory Laminar Airflow Manufacturer
  • Stainless Steel Laminar Airflow with High Quality and Service Support
  • High Quality LAF (Laminar Airflow Unit) Vertical type
  • Premium Quality Vertical LAF
  • Pharmaceutical Biosafety Cabinet
  • Laminar Airflow Unit with UV Light for Microbiology
  • Microbiology Laminar Airflow Unit
  • SS 304 Biosafety Cabinet BSC
  • SS 316 Biosafety Cabinet BSC
  • SS 316L Biosafety Cabinet BSC
  • SS Cleanroom Biosafety Cabinet BSC
  • Stainless Steel Biosafety Cabinet BSC
  • Stainless Steel BSC
  • Flame Proof Biosafety Cabinet BSC
  • FLP Biosafety Cabinet BSC
  • GMP Biosafety Cabinet BSC

Air Curtains

CARE EQUIPMENT
-
0

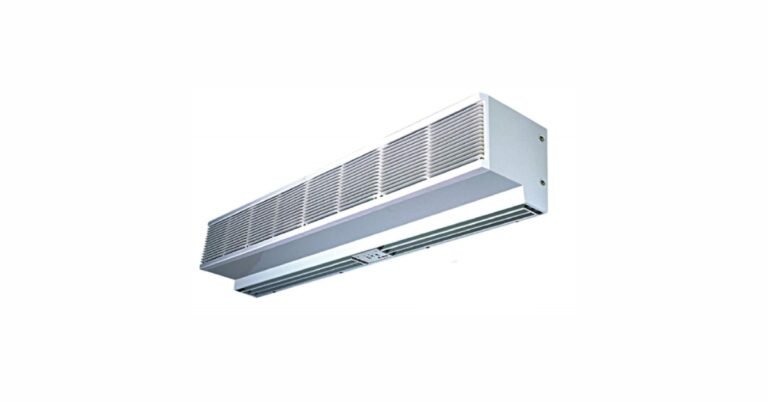

Air Curtains

An air curtain is a device that can effectively separate two different environments without the need for a solid doorway in between. The air stream which is let out from the machine at whatever point the entryway opens causes no limitation in development. It is a proven way to control the temperatures of a room, especially one with an intact air conditioning system.

Air curtains Manufacturers and supplied by Care Equipment at an affordable price.

How does an air curtain work?

Air Curtains essentially create an invisible barrier of high-speed air to isolate and make due conditions, keeping conditioned air inside your work area, while keeping unconditioned air, pests, and pollutants out. CFI Air Curtains can be mounted above a doorway opening, just above the header. Surrounding air is drawn through the front admission barbecue and into the fan baskets.

The blower wheel powers the air into CFI’s cutting-edge air chambers, packing the air and compelling it to descend through the release nozzle. An undetectable air safeguard is made that fills in as the boundary keeping conditioned air from leaving the structure and hindering external air from entering, in any event, when there is no primary door in place.

[toc]

Submit your Inquiry

Get Best Quotation in 30 Minutes!
[wpforms id=”2148″ title=”false”]

Where air curtains are used?

Air curtains keep customers comfortable, saving energy, and keeping debris and pests outdoors. Installing an air curtain in commercial and industrial places like restaurants, hospitals, stores, factories, malls, and many more places is the best move you can make in mitigating these kinds of concerns.

Air curtains are submitted over the entryway in request to make a strong air seal to keep conditioned air in the building and dirt and debris out. A correctly installed and fully efficient
Air curtain can save your business a large chunk of change, by decreasing how much intensity is lost through open entryways.

What are the benefits of air curtains?

Boosts Customer’s Comfort

Keeping clients blissful is basic to all restaurants, and organizations; cold premises can put clients off and may influence the efficiency of your staff. During winter, air curtains disrupt the natural convection effect of warm air spilling out of an open doorway and being replaced by incoming cold air. On both hot and cold days, air curtains keep clients situated near the entryway, or joyfully sitting tight for a table, in an agreeable, sans smoke climate. Joining an air curtain with a friendly climate and great inside plan can draw in clients and keep them inside for longer. An air curtain is an investment that will not only reduce your outgoing bills but increase your profits.

Energy Cost Cutting

An entryway is welcoming to clients, yet it additionally welcomes undesirable virus air. Conventional warming frameworks in eateries can be extremely wasteful, particularly in huge premises with open entryways. Air curtains create an invisible door that prevents the inflow of external air and restricts the outflow of indoor air, protecting inside temperatures in the dining room, bar, or walk-in cooler. This outcome in less mileage on your warming or cooling framework and recoveries you from bringing about unnecessary warming bills. Air curtains can amplify the investment funds spent on warming by working couples with existing heating Systems and diminishing heat loss.

Promotes functioning of Heating or Cooling Systems

With a proficient air curtain, the heat loss through café entryways is definitely decreased. At the point when the heat loss is diminished, the current heating system can have a ton of superfluous overabundance strain removed. This could amount to less use and increment the life expectancy and usefulness of your ongoing heating system. This same effect applies to air conditioning in the summer months.

Healthy &Clean Environment

Air curtains advance a sound and clean climate in a café by limiting flying bugs and different toxins like dust, residue, and exhaust from traffic. This is because they’re designed to create an effective seal by re-circulating facility air in a smooth flow across an open doorway, making it harder for outside air to penetrate their curtain.

Maintain Employee Productivity

Comfortable workers are cheerful representatives, and blissful workers don’t leave. air curtains keep the administration section, kitchen, and back-of-the-house regions clean and smoke-free. An air curtain lets warm air out of the base to the top keeping the temperatures of your restaurant in charge. It wipes out the trading of warm and cold air, subsequently, preventing the draft. Throughout the mid-year season, it advances cool air in your business building, and keeps hot air out, keeping an agreeable climate. It motivates employees and reduces absenteeism.

Air curtains Manufacturers by Care Equipment?

Care Equipment is the largest domestic Air Curtains manufacturers and supplier with a vast product implementation across various industry verticals. With PAN India’s presence, our help team is just a call away.

Care Equipment Air curtains reduce your electricity bill by 40%. Additionally, we are a loved brand among various companies with the best feedback and results from customers over the years. This as of now makes us the biggest seller of Air Curtains that carry huge investment funds alongside different advantages.

Technical Specifications

Air Curtains - Technical Details by Care Equipment

Warranty and Service Support

We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.



Areas of Application

  • Pharmaceutical Industries
  • Hospitals and Medial
  • Microbiology Laboratories
  • Chemical Research Laboratories
  • Food Processing Industries
  • Electronics Industries

Clean Room Furniture

CARE EQUIPMENT
-
0
Clean Room Furniture

efsfsdfsdcdsc

Laboratory Furniture

CARE EQUIPMENT
-
0
Laboratory Furniture

Care Equipment is a producer and provider of laboratory furniture, lab furniture, and modular lab furniture based in India. We have extensive experience in providing a high-quality assortment of Lab Furniture. The supplied furniture is in high demand because of its high quality and dependability. Our goods come in a variety of sizes and shapes to meet the needs of different customers. Furthermore, these items are appropriate for a variety of applications, and they are available.

We think in terms of delivering solutions to problems, and we provide solutions that are tailored to the needs of the market. We respond promptly and professionally, and we assist clients in developing concepts and putting them into action. We work with a variety of sectors and use our multidisciplinary business strategy to find the best solution.

Care Equipment is a well-known manufacturer of research laboratory furniture solutions. The firm has a long history of providing high-quality laboratory furniture. Our solutions are used by well-known clients in cities of INDIA.

[toc]

Plinth Frame

Plinth Frame Work Benches are suitable for chemical testing in a Laboratory consists of an assembly of a combination of storage modules with drawers & shutters or only shutter with shelf inside and Tops of selected material. Laboratory work tables with plinth design is where the work top is mounted directly on a base of modular plinth-mounted cabinets. This type of design provides flexibility in terms of easy change in the configuration of the work table in the future.

MOC Mild Steel / Stainless Steel
Module Size 450mm I 500mm I 600mm I 750mm (L) X 500mm (W) X 750mm I 900mm (H)
Module Body 19SWG (1mm) CRCA
Base Structure 18swg. (1.2mm) CRCA
Table Top Black Jet Granite 18mm
Electric Panel Race way I Reagent rack

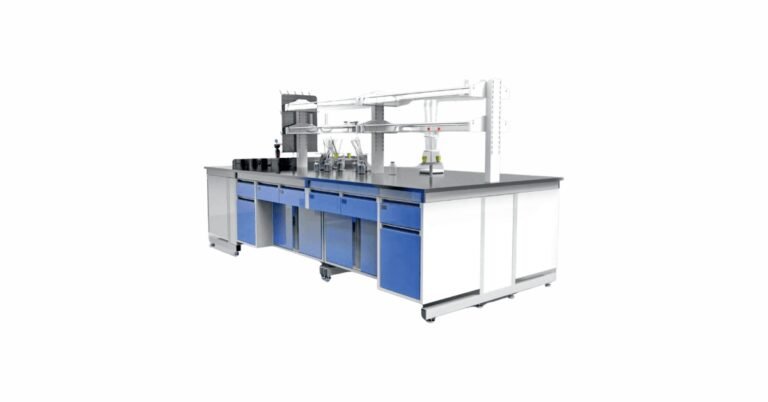

“C” Frame Design

Laboratory work tables with a C-frame design provide excellent strength and weight-bearing capacity to the work tables. The worktop is mounted on a“C” frame structure made of 50 mm x 25 mm x 2 mm pipes welded together and powder coated with pure epoxy powder for high chemical resistance.

Extremely steady and can withstand a load of 200 kg/m². It provides users with a large amount of knee and legroom with mobile and suspended under bench units. We do provide the Height adjustable feet, which can be used to obtain a straight horizon.

MOC Mild Steel / Stainless Steel
Module Size 450mm I 500mm I 600mm I 750mm (L) X 500mm (W) X 750mm I 900mm (H)
Module Body 19SWG (1mm) CRCA
Base Structure 18swg. (1.2mm) CRCA
Table Top Black Jet Granite 18mm
Electric Panel Race way I Reagent rack

Wall Bench

We’ve developed our skills in the production and distribution of fascinating laboratory equipment. In the same way, we provide a Wall Bench that is constructed using high-quality copper, ceramic cartridges, and other necessary materials, as well as modern machinery and cutting-edge technology. It is an excellent choice for usage in a variety of laboratories. Corrosion resistance, acid resistance, great durability, and a long maintenance-free life are all features of our Wall Bench. This Wall Bench is delivered within the specified time range.

Island Bench

Imaginative Island seats are made with PONTOS outlines, SS 304, G. I Sheets and Aluminum Sections appropriately powder covered. The table top is made of Granite/epoxy tar or Phenolic gum which opposes heat, water, most synthetics and erosion. Parcels of the rack make the gear and apparatuses simple to show. In the interim, the research center table leads the accommodation for individuals both side to get things on the rack.

Anti Vibration Table

We offer a wide scope of Anti Vibration Table, which are fabricated utilizing quality material. These tables are intended to give precise readings from different Sensitive Electronic Balances/Instruments, as they support no vibration. We utilize pre-assembled inward side in these tables and these are weighty gauged. The floor contact surfaces of the side bar of the table are fitted with exceptional Anti-Vibration Table

MOC Mild Steel / Stainless Steel
Module Size 450mm I 500mm I 600mm I 750mm (L) X 500mm (W) X 750mm I 900mm (H)
Module Body 19SWG (1mm) CRCA
Inside Frame 10swg. (3mm) CRCA
Table Top Black Jet Granite 18mm
Leveller 60-80mm Vibration Pad & Topside Buffer Pad

Slotted Angle Rack

We are the main producers of Slotted Angle Racks. Inferable from our gigantic specialized information and industry aptitude, we have been fit for presenting an incomparable quality cluster of slotted angle Rack. Just to keep up with the standing of our organization and the trust we have worked among our clients, we utilize best grade material and cutting edge innovation.

Corner Bench

Engaged with the most common way of assembling and providing wide scope of research center supplies and seats to our regarded clients. Here we are giving Corner Bench that are profoundly requested in numerous research center. This seat comprises of gathering of blend of capacity modules with shades with rack inside and Tops of chosen material. All our gave seats are tried on the boundary of value, solidness, execution and other significant variables. The conveyance of this Corner Bench at fixed cost rate.

Submit your Inquiry

Get Best Quotation in 30 Minutes!
[wpforms id=”2148″ title=”false”]



Warranty and Service Support

We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.

Storage Cabinet

CARE EQUIPMENT
-
0

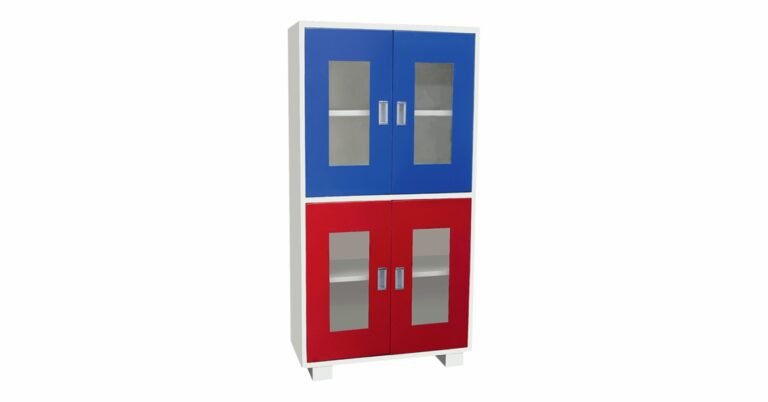

Storage Cabinet

Care Equipment feels massive joy in presenting Itself as trail blazers and Global Leader in assembling and trading of Wall Mount Cabinet & File Storage Cabinet situated in India, and providing for the market with a wide scope of capacity frameworks being fabricated Indigenously by remembering the most recent innovation and going along to every essential norm. Worldwide acknowledgment of our Quality Conscious items.

Care Equipment’ item range has been generally acknowledged all through the world by a large group of regarded makers in INDUSTRIAL SECTOR OF Mining, Steel, Power Plants, Petro Chemical, Pulp and Paper, Pharmaceutical, Chemical, Bulk Drugs and Automobile .

Submit your Inquiry

Get Best Quotation in 30 Minutes!
[wpforms id=”2148″ title=”false”]



Warranty and Service Support

We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.

Fume Hoods

CARE EQUIPMENT
-
0
Fume Hoods

Purpose. Chemical fume hoods, when used properly, are one of the most reliable engineering controls in the laboratory. They protect workers by: Containing vapours, dusts, gases, and fumes generated within the hood, and removing them as air flows into the hood and then out via the laboratory exhaust system. Scientists carry out lots of experiments in laboratories and a number of them may be dangerous. Poisonous gasses are constantly a hassle in these laboratories. So here a fume hood (or a fume cupboard or fume cupboard) is a handy and must-have solution.

The Fume hood is an incumbent for research center work gear with a framed in the area on top that can contain the impacts of the trial being run inside it. It is intended to guarantee well-being for the client and different occupants of the room, and it ought to have the option to sift through any unsafe gasses. The Fume Hood may likewise give security from little blasts or sprinkles. It has an implicit system to emphatically drain the gasses out of the functioning region inside the framed area.

Especially, a Fume Hood is a huge box on top of a lab workbench. This case has an enormous exit way or shade at the front side and might have a glass or CRCA sheet dividers on different sides. Assuming you want to carry a risky experiment of test on top of an island-type lab table, then, at that point, you really want a glass-walled chamber or probably a divider confronting metal smoke wall is fine for the safety of test. As the need might arise to drain the air out of the case, it, by and large, an exhaust fan or pneumatic machine inside it over the work space, and a fixed vent pipe associated with it that goes to the external climate, or to a channel block. There are a few sorts of Fume Hoods that needn’t bother with a vent or air channels we’ll cover them soon.



[toc]

Submit your Inquiry

Get Best Quotation in 30 Minutes!
[wpforms id=”2148″ title=”false”]



TYPES OF FUME HOOD

1. Bench Type Fume Hood

For the most part fume hoods are fundamental in research centers to safeguard the soundness of anybody working in the lab. So The discharges made by lab analyses and research can be hazardous and should be eliminated securely. Likewise With seat fume hoods, benches and larger than usual articles in your lab will have the ventilation important for a protected workplace.

2. Low Bench Type Fume Hood

We makes it simple for you to get the low bench type you want introduced and affirmed rapidly. Our lab furniture specialists remove all of the work from purchasing low bench fume hoods so you can sit back, take in the natural air, and unwind. We have introduced low seat rage hoods across the world for labs, all things considered, going from schools to proficient exploration offices.

3. Walk in Type Fume Hood

For high volume responses or pilot plant responses call for high tallness stroll in kind of walk in type fume hoods. Despite the fact that we have standard sizes of stroll in fume hoods in our item range, at Care Equipment we endeavor to oblige client’s particular prerequisites.



Technical Specifications

Parameter Specification
MOC Mild Steel / Stainless Steel
STD Sizes 1200mm I 1800mm I 2400mm (L) X
915mm (W) X 2300mm (H)
Body Structure Body Structure made from 18SWG (1.2mm) CRCA,
Inner lining of Rear & top baffles in 6mm thick
phenolic resin construction should be chemical &
heat resistant with smooth finish.
Base Cabinet Shutters with Shelves 18SWG (1.2mm) CRCA
Working Top Black Jet Granite 20mm with 20mm skirting covered, 1No. oval shaped cup sink in PP for drainage water.
Shash 5mm Toughened glass with vertical rising shutter
Air foil Aerodynamic Type
Valves Air / Nitrogen / Vaccum / Water
Duct Damper Min 200mm Diameter in PP construction complete with flanges with both sides & manual operation handle.
Electric Panel 5A MCB Switch For Fluorescent Light 5A / 16A MCB Switches & sockets



Warranty and Service Support

We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.



Areas of Application

  • Pharmaceutical Industries
  • Hospitals and Medial
  • Microbiology Laboratories
  • Chemical Research Laboratories
  • Food Processing Industries
  • Electronics Industries

De Dusting Tunnel

CARE EQUIPMENT
-
0
De Dusting Tunnel

The De-Dusting Booth system is used to remove the loose particles/dust present on the receiving materials, which will be brought into the warehousing area before they are transferred into the quarantine area.

Submit your Inquiry

Get Best Quotation in 30 Minutes!
[wpforms id=”2148″ title=”false”]

[toc]



Technical Specifications

  • MOC ( SS304 / CRCA Powder coated / double wall PUFF filled panel )
  • Conveyor for materials transfer ( SS 304 roller / MS coated roller / PVC/Mesh )
  • High velocity HEPA FILTER Jet system (Above 5000 fpm)with manual adjustable direction control
  • Dust extract system HEPA protected at discharge ensuring no air escape from the system
  • Control system ( PLC / Manual ) with differential pressure gauges
  • Removable dust collection tray on wheel.
  • LED concealed light providing light intensity in excess of 400 Lux
  • 2 stage filtration at supply and exhaust.
  • Blower Assembly : Dynamically and statically balanced high static centrifugal blower
  • Nozzles : Made out of SS 304 fixed type or adjustable flush type being fixed on either side of walls and ceiling
  • Drive unit : multiple industrial chains controlled with in-built motor of varied speeds
  • SS/PVC roller option. Vertical brushing system also available
  • All tunnels are validated and shipped prior to dispatch with DQ,IQ,OQ as per GMP Std.



Warranty and Service Support

We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.



Documentation

  • Design Qualification
  • Installation Qualification
  • Operational Qualification



Certificates

  • M.O.C. Certificate
  • Test Certificate for Controller
  • Other Required Certificates
  • Filter Test Certificate
  • Motor Blower Test Certificate
  • Control Panel Test Certificate
  • Differential Pressure Gauge Calibration Certificate



Areas of Application

  • Pharmaceutical Industries
  • Hospitals and Medial
  • Microbiology Laboratories
  • Chemical Research Laboratories
  • Food Processing Industries
  • Electronics Industries



Related Search

  • De Dusting Tunnel manufacturer
  • De Dusting Tunnel Manufacturer in Ahmedabad, Gujarat, India
  • Manufacturer
  • Laminar Airflow Cabinet Manufacturer
  • Laminar Airflow Workstation Manufacturer
  • SS 304 Laminar Airflow Unit Manufacturer
  • Cleanroom LAF Manufacturer
  • Laboratory Laminar Airflow Manufacturer
  • Stainless Steel Laminar Airflow with High Quality and Service Support
  • High Quality LAF (Laminar Airflow Unit) Vertical type
  • Premium Quality Vertical LAF
  • Pharmaceutical De Dusting Tunnel
  • Laminar Airflow Unit with UV Light for Microbiology
  • Microbiology Laminar Airflow Unit
  • SS 304 De Dusting Tunnel
  • SS 316 De Dusting Tunnel
  • SS 316L De Dusting Tunnel
  • SS Cleanroom De Dusting Tunnel
  • Stainless Steel De Dusting Tunnel
  • Stainless Steel
  • Flame Proof De Dusting Tunnel
  • FLP De Dusting Tunnel
  • GMP De Dusting Tunnel

Cleanroom Air Shower and Tunnel

CARE EQUIPMENT
-
0

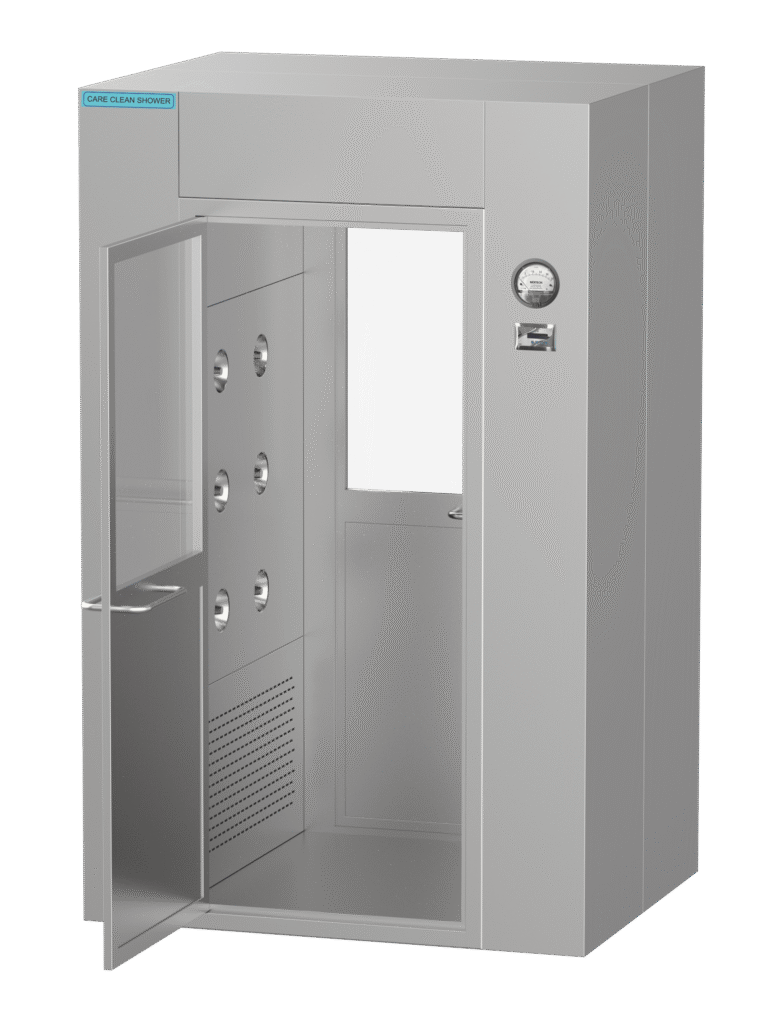

Cleanroom Air Shower and Tunnel

Air shower is a two doors walk-through dust removal system, which is fitted prior to cleanroom entrance. The purpose of setting up air shower system is to control the risk of spreading contaminants in the cleanroom environment by removing particulate matter on the personnel by throwing class 100 airflow. The air shower machine throws high velocity HEPA filtered air through jet nozzles which removes particulate matter (includes solid and liquid particles suspend in air and some of them are hazardous in nature). The contaminated air is again filtered and re-circulated. With-in seconds, the person entering into air shower comes out entirely cleans i.e. free from harmful dust. Electronics and Pharmaceutical productions and animal breeding laboratories are some of areas where air showers are extensively used.

We are V-Mac Enginners manufacturer in India. We have in house facility of design, construction and installation of air shower entry systems for laboratories, clean rooms and manufacturing areas etc. These systems are carefully constructed at our factory, tested at various parameters then dispatched to the client’s site. Our air shower cabinets are designed with corrosion resistant materials (Stainless steel or powder coated MS), fitted with easy to use controls and safety arrangements; filters are easily replaceable whenever needed.

Our air shower entry systems are custom designed and constructed as per requirements of the customers and sold at industry leading price in India.

NO. OF PERSONS PER CYCLE
Standard models are made only for 1 person per cycle. To meet the needs of large number of workers, we can also design air showers with 2, 3 and 4 persons per cycles. They can also be fitted in series and parallel to meet demand of large number of workers.

EXIT TYPE
Our air showers are available of throughout type entry-exit, L type entry-exit and one-way entry and two way exit type.

CONSTRUCTION
Made of only corrosion resistant materials; we use either high grade stainless steel anti-microbial properties or powder coated MS for construction.

DOORS
Two doors are fitted in a system, one at entrance and one at exit. Doors are also made of stainless steel or powder coated MS. Handles and hydraulic door closers are fitted for easy access of door. Electromagnetic interlocking allows opening of single at one time; thus, prevents unwanted contamination inside the machine. There is also emergency switch; by pressing it, both doors open immediately.

BLOWER
Properly balanced motor blower of standard make, fitted with suspension system for noise level reduction.

FLOORING
Flooring or platform is made of either Stainless steel or Aluminum with detachable anti-slip PVC mat or equivalent material.

FITTINGS
Over all fittings such as handles, hinges and wires etc. are of any reputed brand and ISI marked.

INSTALLATION
Our engineering team visits your site and installs the machine properly. Demonstration and training is provided to all relevant staff.

Submit your Inquiry

Get Best Quotation in 30 Minutes!
[wpforms id=”2148″ title=”false”]

[toc]



Technical Specifications

Parameter Specification
Air Flow Cross Flow (Recirculated)
Air Shower Mode Automatic and Manual
Shower Time 0-99s Adjustable
Air Velocity 18 to 22 m/s
Material Thickness 1.2 mm
Surface Finish Matte Finish No. 4
Material Grade SS 304 / SS 316 / SS 316L / In Combination
Construction Double Skin Body Construction, Recirculatory Plenum on Both Sides
Internal Coving Pencil Coving in Internal Working Area for Easy Cleaning
HEPA Filter 0.3 Micron, H14 Grade with Efficiency 99.999%, Supply Minipleat HEPA Filter
Pre-Filter 5 Micron, EU5 grade with Efficiency 95% – Washable (For Fresh Air & Recirculation)
Motor Blower Statically & Dynamically Balanced Single/Double Inlet Centrifugal Type Motor Blower
Magnehelic Gauge 0 to 25 MM, To measure differential pressure across HEPA Filter
Speed Variable To adjust the speed of Motor Blower and maintain the required velocity.
Display Two Line Digital Display with ON/OFF Buttons with LED Indication
Controller Electromagnetic Door Interlocking (Allows to open one door at a time)
LED Light Diffused Fluorescent Lighting to provide an intensity of 300 LUX
UV Light 8W-11W
Hour Meter UV Burning Hour Meter (Inbuilt in Controller)
Alarm System Door Open / Close Delay Audio Visual Alarm
System Protection Password Protected System
Door Type SS Sandwich Door with View Panel
View Panel Double Side 4 mm Toughened Glass
Door Handle SS 304
Door Hinges SS 304
DOP/PAO Test Port SS 304 (For HEPA Filter Testing)
Atmospheric Nozzle SS 304
Noise Level Less than 65 DB on scale
Power Supply 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase)
Documentation DQ, IQ and OQ Documents along with all Necessary Test Certificates



Standard Size of Air Shower

Model Number Internal Size in MM
(W X D X H)		 Internal Size in Feet
(W X D X H)
AS-1.0 750 X 900 X 1950 mm 2.5 X 3 X 6.5 Feet
AS-2.0 750 X 1200 X 1950 mm 2.5 X 4 X 6.5 Feet
AS-3.0 900 X 900 X 1950 mm 3 X 6 X 6.5 Feet
AS-4.0 900 X 1800 X 1950 mm 3 X 6 X 6.5 Feet
*We also manufacture Air Shower size as per customer’s requirement



Warranty and Service Support

We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.



Key Features and Specifications

  • Design according to WHO, GMP Guidelines ISO 14644-3:2018 [IEST-RP-CC001.3] Compliance
  • Electromagnetic Door Interlocking System with Process Lock Timer (Inbuilt)
  • 0.3 Micron HEPA Filter with 99.999% Efficiency down to 0.3 Micron [99.995% @ 0.3 MPPS] with Make AAF (American Air Filter).
  • 5 Micron Pre Filter with 90% Efficiency down to 5 Micron.
  • Centrifugal Forward Curved / Backward Curved Motor blower with speed variable.
  • Digital or Analog differential pressure gauge with range 0 to 25 mm of WC.
  • Advanced airtight Sturdy Built Doubled Skin Body with No Sharp Edges
  • Pencil Coving for Internal Working Area for Easy Cleaning
  • Fluorescent Illumination LED Light and UV Light for Disinfection with UV Hour Meter (Inbuilt)
  • Door Open / Close Delay Alarm (Inbuilt)
  • 30 MM Double Skin Doors with View Panel 5 MM Toughened Glass as View Panel



Optional Features & Accessories

  • Flame Proof Design & Construction
  • Three Way Air Shower
  • L Type Construction
  • UV Hour Meter (External)
  • Digital Differential Pressure Gauge with Alarm Hour Meter
  • Extra UV Light and Fluorescent LED Light
  • Spare HEPA Filters, Pre and Fine Filters
  • eFRM / PTFE Media HEPA Filter for Velocity at working height as per latest guidelines.
  • EC Series Backward curved motor blower for Energy efficient solution.



Validation of Air Shower

  • Velocity Measurement [90 ± 20 FPM at 150 mm From HEPA Filter Face, (0.45 ± 0.05 m/s)]
  • HEPA Filter Leak Test / Integrity Test
  • Particle Count Test [As per Class 100 / ISO 5]
  • Air Flow Pattern Test [Smoke Study]
  • Recovery Test



Documentation

  • Design Qualification
  • Installation Qualification
  • Operational Qualification



Certificates

  • M.O.C. Certificate
  • Test Certificate for Controller
  • HEPA Filter Test Certificate
  • Motor Blower Test Certificate
  • Pre Filter and Fine Filter Test Certificate
  • Differential Pressure Gauge Calibration Test Certificate
  • Microcontroller with Digital Display Test Certificate



Areas of Application

  • Pharmaceutical Industries
  • Hospitals and Medial
  • Microbiology Laboratories
  • Chemical Research Laboratories
  • Food Processing Industries
  • Electronics Industries



Related Search

  • Two Way Air Shower manufacturer
  • Three Way Air Shower Manufacturer in Ahmedabad, Gujarat, India
  • L Shape Air Shower Manufacturer
  • Air Shower and Tunnel Manufacturer
  • Hospital Air Shower and Tunnel Manufacturer
  • SS Air Shower and Tunnel Manufacturer
  • Cleanroom Air Shower Manufacturer
  • Laboratory Air Shower Manufacturer
  • Stainless Steel Air Shower with High Quality and Service Support
  • High Quality Air Shower
  • Premium Quality Air Shower
  • Pharmaceutical Air Shower
  • UV Air Shower and Tunnel
  • UV Air Shower
  • SS 304 Air Shower with UV Light
  • SS 316 Air Shower
  • SS 316L Air Shower and Tunnel
  • SS Cleanroom Air Shower and Tunnel
  • Stainless Steel Air Shower and Tunnel
  • Stainless Steel Air Shower
  • Passive Air Shower
  • Flame Proof Air Shower
  • FLP Air Shower
  • Operation Theatre Air Shower
  • GMP Air Shower

Sterile Garment Storage Cubicle

CARE EQUIPMENT
-
0
Sterile Garment Storage Cubicle

Sterile Garment Storage Cabinet is one essential equipment in any clean room. It is used to keep cleanroom garments, tools, wipes, and other materials and plays important role in maintaining the cleanliness of a cleanroom environment.

We are cleanroom storage cabinet manufacturers and suppliers in India. We have different standard models of these storage cabinets and we also make customized units to meet the specific storage requirements of our customers. Each garment storage cabinet is equipped with Pre-filter, blower assembly, HEPA filter, LED light and UV light, etc.

To meet multiple storage requirements, each cabinet is designed with two compartments; one with a hanging rod for the dress, and the other one has removable shelves. These compartments can also be modified as per specific needs.

We make these garment storage cabinets with thick sheets of stainless steel 304 or 316. If needed, we can also use powder coated GI sheet for low-budget requirements. These cabinets are low power consumption and available at wholesale prices throughout India.

Submit your Inquiry

Get Best Quotation in 30 Minutes!
[wpforms id=”2148″ title=”false”]

[toc]



Technical Specifications

Parameter Specification
Air Flow Vertical Down Flow (Recirculated)
Air Cleanliness Dust counts exceeds Class 100 requirements as per ISO 14644 & IEST-RP-CC001.3
Air Velocity 90 ± 20 FPM at 150 mm From HEPA Filter Face, (0.45 ± 0.05 m/s)
Material Thickness 1 mm / 1.2 mm
Surface Finish Matte Finish No. 4
Material Grade SS 304 / SS 316 / SS 316L / In Combination
Construction Double Skin Body Construction, Recirculatory Plenum on Both Sides
Internal Coving Pencil Coving in Internal Working Area for Easy Cleaning
HEPA Filter 0.3 Micron, H14 Grade with Efficiency 99.999%, Supply Minipleat HEPA Filter
Pre-Filter 5 Micron, EU5 grade with Efficiency 95% – Washable (For Fresh Air & Recirculation)
Motor Blower Statically & Dynamically Balanced Single/Double Inlet Centrifugal Type Motor Blower
Magnehelic Gauge 0 to 25 MM, To measure differential pressure across HEPA Filter
Speed Variable To adjust the speed of Motor Blower and maintain the required velocity.
Display Two Line Digital Display with ON/OFF Buttons with LED Indication
Controller Electromagnetic Door Interlocking (Allows to open one door at a time)
LED Light Diffused Fluorescent Lighting to provide an intensity of 300 LUX
UV Light 8W-11W
Hour Meter UV Burning Hour Meter (Inbuilt in Controller)
Alarm System Door Open / Close Delay Audio Visual Alarm
System Protection Password Protected System
Door Type SS Sandwich Door with View Panel
View Panel Double Side 4 mm Toughened Glass
Door Handle SS 304
Door Hinges SS 304
DOP/PAO Test Port SS 304 (For HEPA Filter Testing)
Atmospheric Nozzle SS 304
Noise Level Less than 65 DB on scale
Power Supply 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase)
Documentation DQ, IQ and OQ Documents along with all Necessary Test Certificates



Standard Size of Sterile Garment Storage Cubicle

Model Number Internal Size in MM
(W X D X H)		 Internal Size in Feet
(W X D X H)
SGSC-450 450 X 450 X 450 mm 1.5 X 1.5 X 1.5 Feet
SGSC-600 600 X 450 X 600 mm 2 X 1.5 X 2 Feet
SGSC-750 750 X 450 X 750 mm 2.5 X 1.5 X 2.5 Feet
SGSC-900 900 X 450 X 900 mm 3 X 1.5 X 3 Feet
*We also manufacture Sterile Garment Storage Cubicle size as per customer’s requirement



Warranty and Service Support

We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.



Key Features and Specifications

  • Design according to WHO, GMP Guidelines ISO 14644-3:2018 [IEST-RP-CC001.3] Compliance
  • Electromagnetic Door Interlocking System with Process Lock Timer (Inbuilt)
  • 0.3 Micron HEPA Filter with 99.999% Efficiency down to 0.3 Micron [99.995% @ 0.3 MPPS] with Make AAF (American Air Filter).
  • 5 Micron Pre Filter with 90% Efficiency down to 5 Micron.
  • Centrifugal Forward Curved / Backward Curved Motor blower with speed variable.
  • Digital or Analog differential pressure gauge with range 0 to 25 mm of WC.
  • Advanced airtight Sturdy Built Doubled Skin Body with No Sharp Edges
  • Pencil Coving for Internal Working Area for Easy Cleaning
  • Fluorescent Illumination LED Light and UV Light for Disinfection with UV Hour Meter (Inbuilt)
  • Door Open / Close Delay Alarm (Inbuilt)
  • 30 MM Double Skin Doors with View Panel 5 MM Toughened Glass as View Panel



Optional Features & Accessories

  • Flame Proof Design & Construction
  • Three Way Sterile Garment Storage Cubicle
  • L Type Construction
  • Support Stand for Sterile Garment Storage Cubicle Mounting
  • UV Hour Meter (External)
  • Digital Differential Pressure Gauge with Alarm Hour Meter
  • Extra UV Light and Fluorescent LED Light
  • Spare HEPA Filters, Pre and Fine Filters
  • eFRM / PTFE Media HEPA Filter for Velocity at working height as per latest guidelines.
  • EC Series Backward curved motor blower for Energy efficient solution.



Validation of Sterile Garment Storage Cubicle

  • Velocity Measurement [90 ± 20 FPM at 150 mm From HEPA Filter Face, (0.45 ± 0.05 m/s)]
  • HEPA Filter Leak Test / Integrity Test
  • Particle Count Test [As per Class 100 / ISO 5]
  • Air Flow Pattern Test [Smoke Study]
  • Recovery Test



Mounting Arrangements

  • Wall Mounting
  • Stand Mounting
  • Floor Mounting



Documentation

  • Design Qualification
  • Installation Qualification
  • Operational Qualification



Certificates

  • M.O.C. Certificate
  • Test Certificate for Controller
  • HEPA Filter Test Certificate
  • Motor Blower Test Certificate
  • Pre Filter and Fine Filter Test Certificate
  • Differential Pressure Gauge Calibration Test Certificate
  • Microcontroller with Digital Display Test Certificate



Areas of Application

  • Pharmaceutical Industries
  • Hospitals and Medial
  • Microbiology Laboratories
  • Chemical Research Laboratories
  • Food Processing Industries
  • Electronics Industries



Related Search

  • Two Way Sterile Garment Storage Cubicle manufacturer
  • Three Way Sterile Garment Storage Cubicle Manufacturer in Ahmedabad, Gujarat, India
  • L Shape Sterile Garment Storage Cubicle Manufacturer
  • Hatch Box Manufacturer
  • Hospital Sterile Garment Storage Cubicle Manufacturer
  • SS Pass Through Box Manufacturer
  • Cleanroom Sterile Garment Storage Cubicle Manufacturer
  • Laboratory Sterile Garment Storage Cubicle Manufacturer
  • Stainless Steel Sterile Garment Storage Cubicle with High Quality and Service Support
  • High Quality Sterile Garment Storage Cubicle
  • Premium Quality Sterile Garment Storage Cubicle
  • Pharmaceutical Sterile Garment Storage Cubicle
  • UV Sterile Garment Storage Cubicle
  • UV Sterile Garment Storage Cubicle
  • SS 304 Sterile Garment Storage Cubicle with UV Light
  • SS 316 Sterile Garment Storage Cubicle
  • SS 316L Sterile Garment Storage Cubicle
  • SS Sterile Garment Storage Cubicle
  • Stainless Steel Sterile Garment Storage Cubicle
  • Stainless Steel Sterile Garment Storage Cubicle
  • Passive Sterile Garment Storage Cubicle
  • Flame Proof Sterile Garment Storage Cubicle
  • FLP Sterile Garment Storage Cubicle
  • Operation Theatre Sterile Garment Storage Cubicle
  • GMP Sterile Garment Storage Cubicle
12Page 1 of 2
© Newspaper WordPress Theme by TagDiv
