De Dusting Tunnel

Care Equipments - Clean Room Equipments Manufacturer

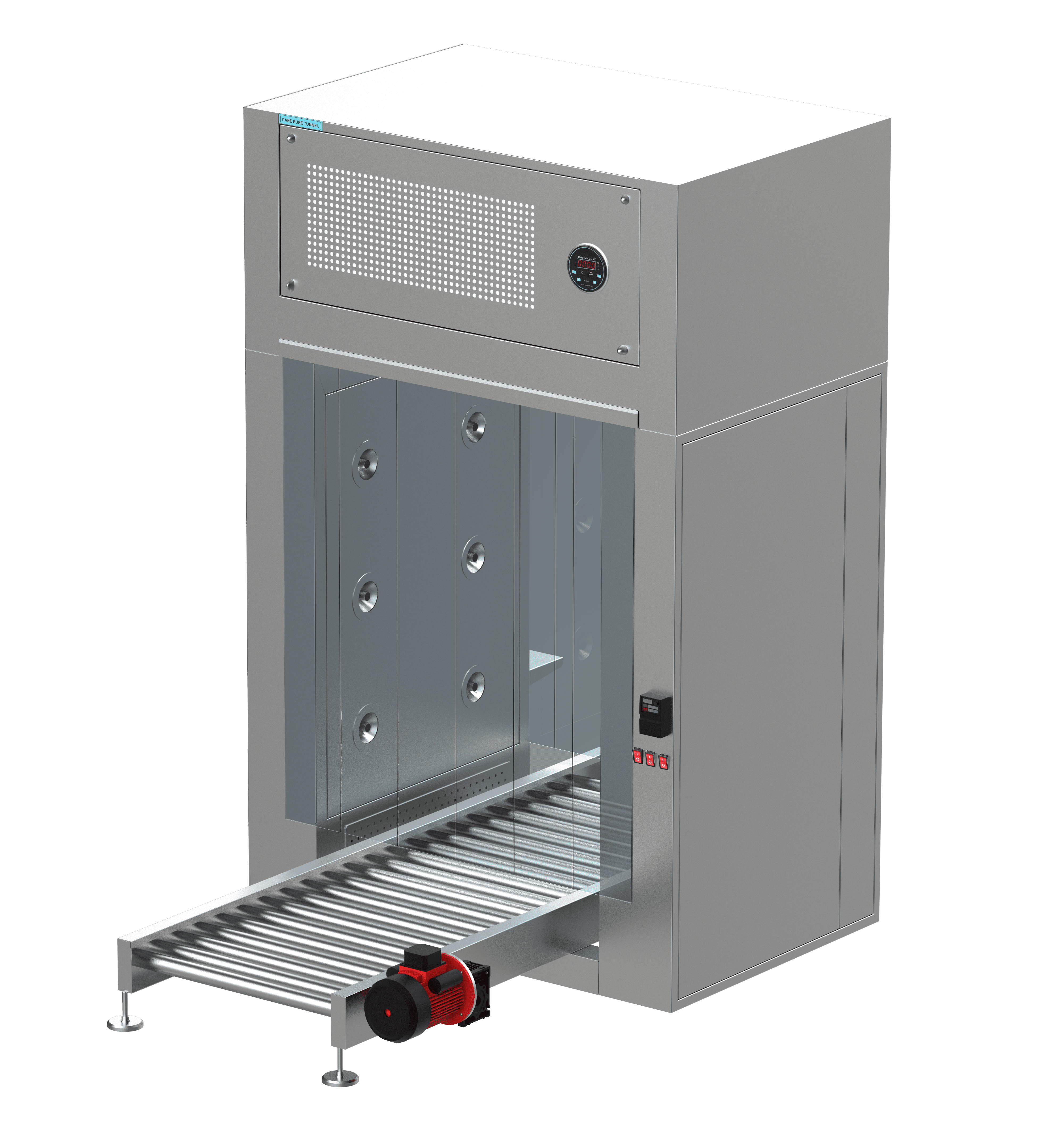

The De-Dusting Booth system is used to remove the loose particles/dust present on the receiving materials, which will be brought into the warehousing area before they are transferred into the quarantine area.

Submit your Inquiry

Get Best Quotation in 30 Minutes!



Technical Specifications

  • MOC ( SS304 / CRCA Powder coated / double wall PUFF filled panel )
  • Conveyor for materials transfer ( SS 304 roller / MS coated roller / PVC/Mesh )
  • High velocity HEPA FILTER Jet system (Above 5000 fpm)with manual adjustable direction control
  • Dust extract system HEPA protected at discharge ensuring no air escape from the system
  • Control system ( PLC / Manual ) with differential pressure gauges
  • Removable dust collection tray on wheel.
  • LED concealed light providing light intensity in excess of 400 Lux
  • 2 stage filtration at supply and exhaust.
  • Blower Assembly : Dynamically and statically balanced high static centrifugal blower
  • Nozzles : Made out of SS 304 fixed type or adjustable flush type being fixed on either side of walls and ceiling
  • Drive unit : multiple industrial chains controlled with in-built motor of varied speeds
  • SS/PVC roller option. Vertical brushing system also available
  • All tunnels are validated and shipped prior to dispatch with DQ,IQ,OQ as per GMP Std.


Warranty and Service Support

We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.



  • Design Qualification
  • Installation Qualification
  • Operational Qualification



  • M.O.C. Certificate
  • Test Certificate for Controller
  • Other Required Certificates
  • Filter Test Certificate
  • Motor Blower Test Certificate
  • Control Panel Test Certificate
  • Differential Pressure Gauge Calibration Certificate


Areas of Application

  • Pharmaceutical Industries
  • Hospitals and Medial
  • Microbiology Laboratories
  • Chemical Research Laboratories
  • Food Processing Industries
  • Electronics Industries
