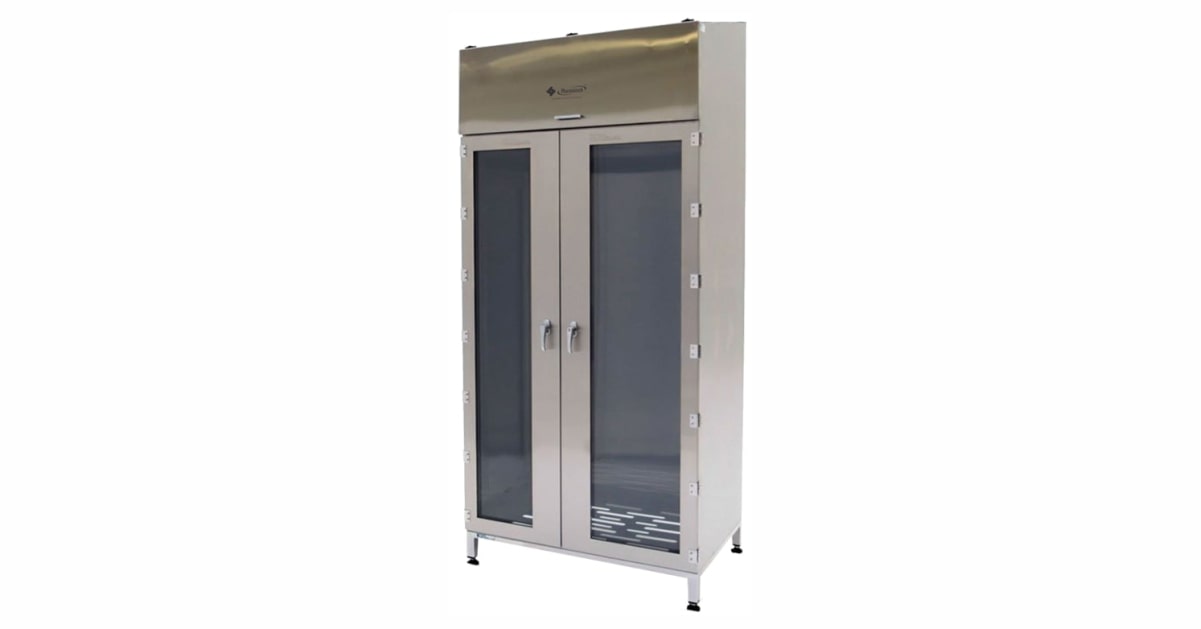

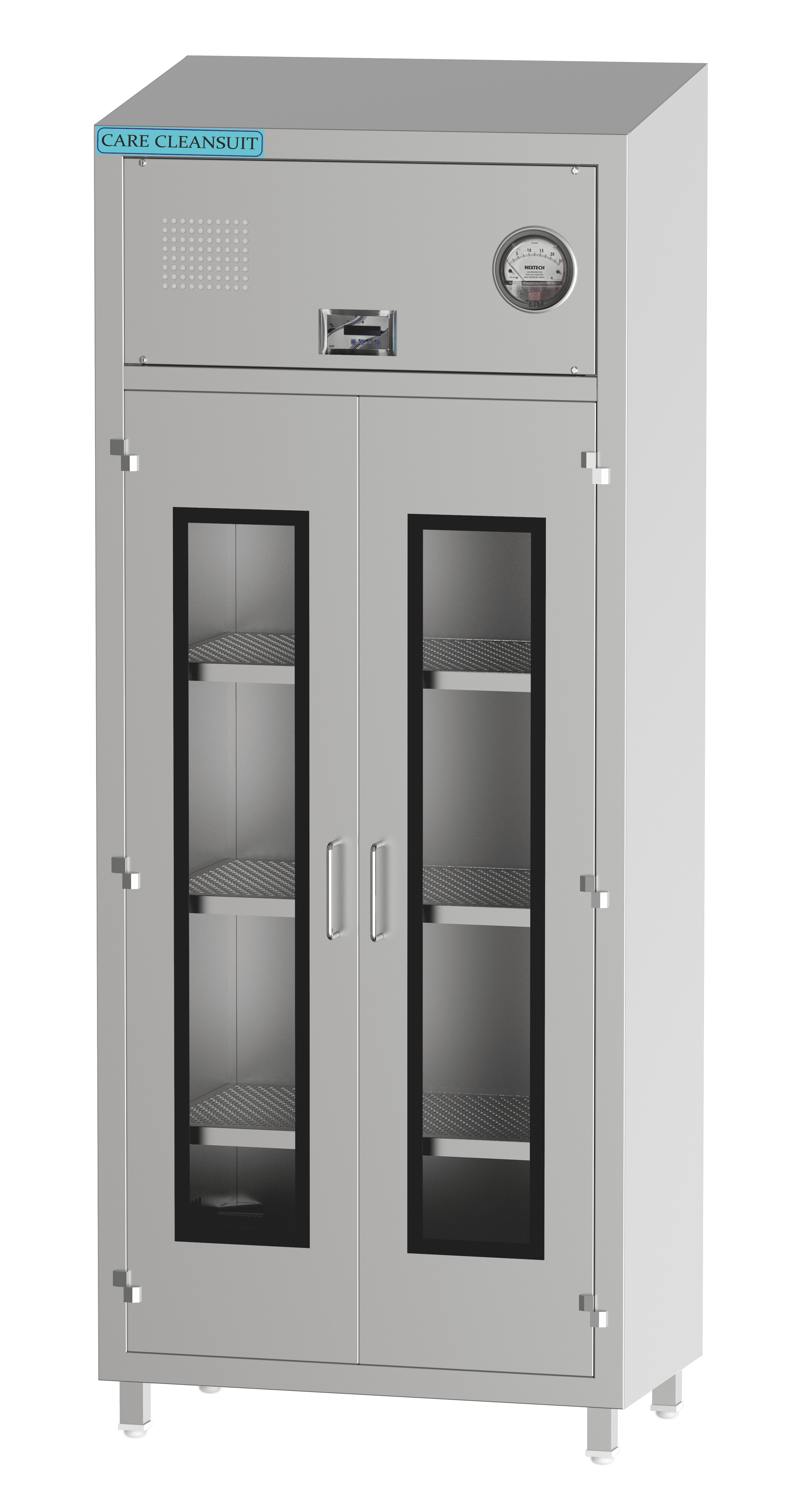

Sterile Garment Storage Cabinet is one essential equipment in any clean room. It is used to keep cleanroom garments, tools, wipes, and other materials and plays important role in maintaining the cleanliness of a cleanroom environment.
We are cleanroom storage cabinet manufacturers and suppliers in India. We have different standard models of these storage cabinets and we also make customized units to meet the specific storage requirements of our customers. Each garment storage cabinet is equipped with Pre-filter, blower assembly, HEPA filter, LED light and UV light, etc.
To meet multiple storage requirements, each cabinet is designed with two compartments; one with a hanging rod for the dress, and the other one has removable shelves. These compartments can also be modified as per specific needs.
We make these garment storage cabinets with thick sheets of stainless steel 304 or 316. If needed, we can also use powder coated GI sheet for low-budget requirements. These cabinets are low power consumption and available at wholesale prices throughout India.
Submit your Inquiry
Get Best Quotation in 30 Minutes!
Contents
Technical Specifications
| Parameter | Specification |
| Air Flow | Vertical Down Flow (Recirculated) |
| Air Cleanliness | Dust counts exceeds Class 100 requirements as per ISO 14644 & IEST-RP-CC001.3 |
| Air Velocity | 90 ± 20 FPM at 150 mm From HEPA Filter Face, (0.45 ± 0.05 m/s) |
| Material Thickness | 1 mm / 1.2 mm |
| Surface Finish | Matte Finish No. 4 |
| Material Grade | SS 304 / SS 316 / SS 316L / In Combination |
| Construction | Double Skin Body Construction, Recirculatory Plenum on Both Sides |
| Internal Coving | Pencil Coving in Internal Working Area for Easy Cleaning |
| HEPA Filter | 0.3 Micron, H14 Grade with Efficiency 99.999%, Supply Minipleat HEPA Filter |
| Pre-Filter | 5 Micron, EU5 grade with Efficiency 95% – Washable (For Fresh Air & Recirculation) |
| Motor Blower | Statically & Dynamically Balanced Single/Double Inlet Centrifugal Type Motor Blower |
| Magnehelic Gauge | 0 to 25 MM, To measure differential pressure across HEPA Filter |
| Speed Variable | To adjust the speed of Motor Blower and maintain the required velocity. |
| Display | Two Line Digital Display with ON/OFF Buttons with LED Indication |
| Controller | Electromagnetic Door Interlocking (Allows to open one door at a time) |
| LED Light | Diffused Fluorescent Lighting to provide an intensity of 300 LUX |
| UV Light | 8W-11W |
| Hour Meter | UV Burning Hour Meter (Inbuilt in Controller) |
| Alarm System | Door Open / Close Delay Audio Visual Alarm |
| System Protection | Password Protected System |
| Door Type | SS Sandwich Door with View Panel |
| View Panel | Double Side 4 mm Toughened Glass |
| Door Handle | SS 304 |
| Door Hinges | SS 304 |
| DOP/PAO Test Port | SS 304 (For HEPA Filter Testing) |
| Atmospheric Nozzle | SS 304 |
| Noise Level | Less than 65 DB on scale |
| Power Supply | 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase) |
| Documentation | DQ, IQ and OQ Documents along with all Necessary Test Certificates |
Standard Size of Sterile Garment Storage Cubicle
| Model Number | Internal Size in MM (W X D X H) |
Internal Size in Feet (W X D X H) |
| SGSC-450 | 450 X 450 X 450 mm | 1.5 X 1.5 X 1.5 Feet |
| SGSC-600 | 600 X 450 X 600 mm | 2 X 1.5 X 2 Feet |
| SGSC-750 | 750 X 450 X 750 mm | 2.5 X 1.5 X 2.5 Feet |
| SGSC-900 | 900 X 450 X 900 mm | 3 X 1.5 X 3 Feet |
| *We also manufacture Sterile Garment Storage Cubicle size as per customer’s requirement | ||
Warranty and Service Support
We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.
Key Features and Specifications
- Design according to WHO, GMP Guidelines ISO 14644-3:2018 [IEST-RP-CC001.3] Compliance
- Electromagnetic Door Interlocking System with Process Lock Timer (Inbuilt)
- 0.3 Micron HEPA Filter with 99.999% Efficiency down to 0.3 Micron [99.995% @ 0.3 MPPS] with Make AAF (American Air Filter).
- 5 Micron Pre Filter with 90% Efficiency down to 5 Micron.
- Centrifugal Forward Curved / Backward Curved Motor blower with speed variable.
- Digital or Analog differential pressure gauge with range 0 to 25 mm of WC.
- Advanced airtight Sturdy Built Doubled Skin Body with No Sharp Edges
- Pencil Coving for Internal Working Area for Easy Cleaning
- Fluorescent Illumination LED Light and UV Light for Disinfection with UV Hour Meter (Inbuilt)
- Door Open / Close Delay Alarm (Inbuilt)
- 30 MM Double Skin Doors with View Panel 5 MM Toughened Glass as View Panel
Optional Features & Accessories
- Flame Proof Design & Construction
- Three Way Sterile Garment Storage Cubicle
- L Type Construction
- Support Stand for Sterile Garment Storage Cubicle Mounting
- UV Hour Meter (External)
- Digital Differential Pressure Gauge with Alarm Hour Meter
- Extra UV Light and Fluorescent LED Light
- Spare HEPA Filters, Pre and Fine Filters
- eFRM / PTFE Media HEPA Filter for Velocity at working height as per latest guidelines.
- EC Series Backward curved motor blower for Energy efficient solution.
Validation of Sterile Garment Storage Cubicle
- Velocity Measurement [90 ± 20 FPM at 150 mm From HEPA Filter Face, (0.45 ± 0.05 m/s)]
- HEPA Filter Leak Test / Integrity Test
- Particle Count Test [As per Class 100 / ISO 5]
- Air Flow Pattern Test [Smoke Study]
- Recovery Test
Mounting Arrangements
- Wall Mounting
- Stand Mounting
- Floor Mounting
Documentation
- Design Qualification
- Installation Qualification
- Operational Qualification
Certificates
- M.O.C. Certificate
- Test Certificate for Controller
- HEPA Filter Test Certificate
- Motor Blower Test Certificate
- Pre Filter and Fine Filter Test Certificate
- Differential Pressure Gauge Calibration Test Certificate
- Microcontroller with Digital Display Test Certificate
Areas of Application
- Pharmaceutical Industries
- Hospitals and Medial
- Microbiology Laboratories
- Chemical Research Laboratories
- Food Processing Industries
- Electronics Industries
